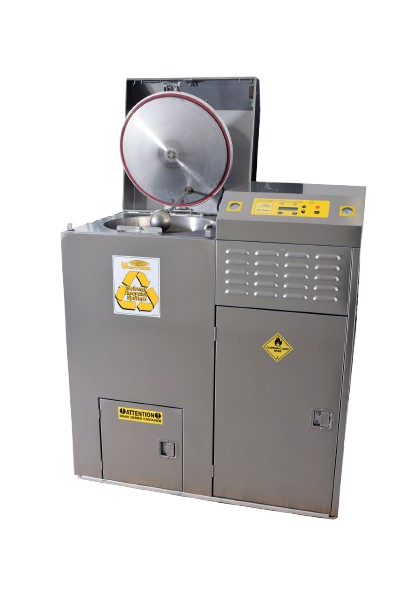

High-Capacity Solvent Recyclers
Safety-Kleen’s new line of high-capacity solvent distillation systems can provide substantial savings over the cost of purchasing virgin solvent without compromising solvent purity. These systems will dramatically lower your costs by reducing waste and disposal needs as well as the amount of new solvent you need to purchase. All models feature vacuum distillation technology, stainless steel components and auto-fill systems, providing you with the most efficient and simple-to-use recyclers on the market.
Model | Minimizer 8 | Minimizer 16 | Minimizer C |
|---|---|---|---|
Overall | Height: 42.5 in/1080 mm | Height: 42.5 in/1080 mm | Height: 47.0 in/1194 mm |
Vessel | Capacity: 6.6 U.S. gal/25L | Capacity: 15.9 U.S. gal/60L | Capacity: 20 U.S. gal/80L |
Weight | 180 lbs | 500 lbs | 500 lbs |
Cycle Time | 4–8 hrs. per batch | 8–15 hrs. per batch | 45–55 gal/day |
Recycling Operation | Batch | Batch | Continuous |
Electrical | Voltage: 220–240V | Voltage: 220–240V | Voltage: 220–240V |
Safety | UL Standard 2208 | UL Standard 2208 | UL Standard 2208 |
Standard Features:
- Safety – UL Standard 2208 and CSA Standard 22.2 No. 30 and 88. Certified to Class 1 Division 1 Group D Explosion Proof standards
- Vacuum Distillation – Decreases boiling point of solvents, which leads to reduced energy consumption and distillation optimization, providing greater flexibility with the types of solvents that can be recycled
- Stainless Steel Condenser – Condensers and piping are fabricated from high-grade stainless steel, lengthening lifetime and durability of the recycler
- High Temp System – Allows for efficient distillation of solvents with boiling points below 240°C/464°F (or 200°C/392°F for the Minimizer 16)
- Solvent Transfer – Fill-by-timer and transfer-out-by-timer options
- Waste Collection – High-temperature nylon bags capture dirty solvent residues after distillation process for easy removal
- Control System – Operational control and continuous monitoring by sophisticated micro-processor with status messages; self test mode; other built-in safety programs.
